Key Features:

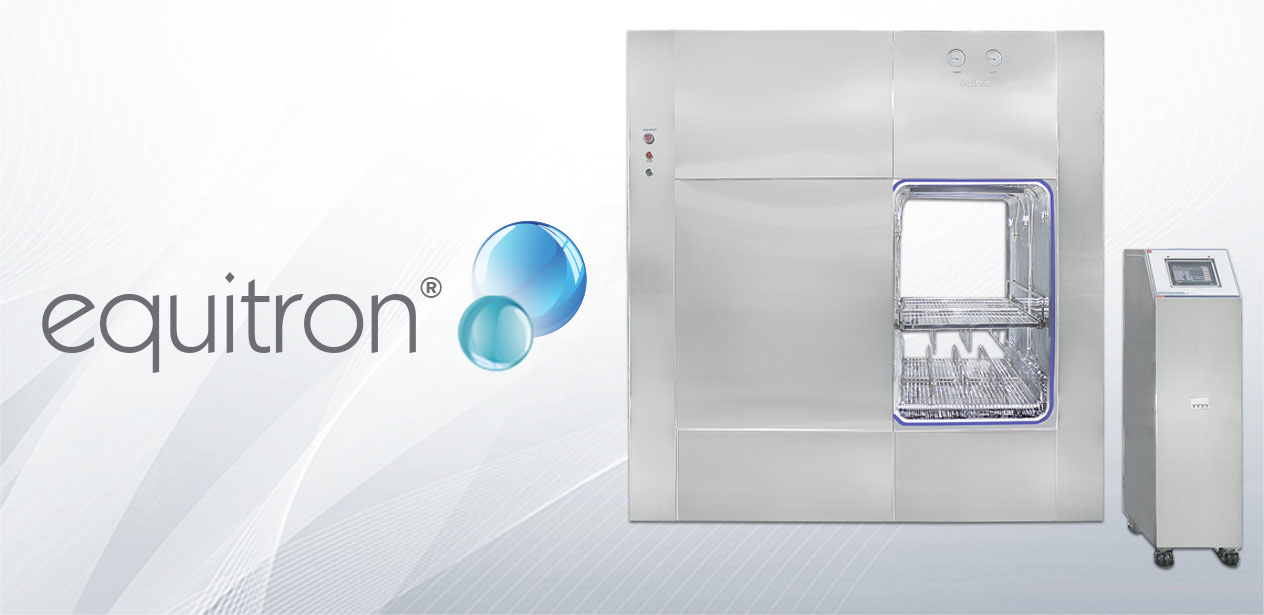

  • Fully automatic sliding door (single / double door)
  • Pre & post vacuum using a superior and low-noise liquid ring pump
  • Option of steam generator or connecting to client's steam source
  • Chamber and loading trays of SS 316
  • Option of trolley(s) and carriage with trays
  • Passes Bowie Dick Test
  • Built-in validation port for self-calibration checks
  • Chamber manufactured and tested as per ASME guidelines
  • Conformance to national & international standards
  • Multi-colour touchscreen Graphical Programmable Logic Control (PLC)
  • Corrective action on power failure
  • Option of 21 CFR Part 11 Compliant Software

Model #7461-0660-RS1 #7461-0820-RS1 #7461-1000-RS1 #7461-1250-RS1
#7461-0660-RS2 #7461-0820-RS2 #7461-1000-RS2 #7461-1250-RS2
Capacity (L) 660 820 1000 1250
Chamber Dim (mm) 660 x 1000 x 1000 660 x 1000 x 1250 660 x 1000 x 1530 660 x 1000 x 1900
Door

Single Door - models ending with '1'

Double Door - models ending with '2'
Max Operating Parameters 206.8 kPA (30 psi) / 135˚C / Vacuum

For utilities required and other technical specification, kindly contact the company representative for further details.

Due to continuous improvement in design, the product supplied may have modified features.
