Applications:

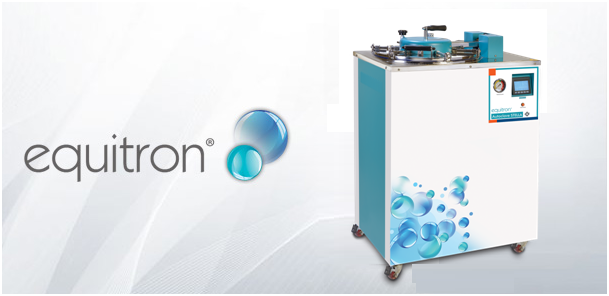

- EQUITRON STELLA series Autoclaves are ideal for tests involving controlled progressive heat up & cooling applications.
- Ideal for Extractable & Leachable tests in Pharma, QC, QA, R&D Labs, Production & Bio-Labs for all situations requiring critical control over the entire process of sterilization.
EQUITRON Advantages:
- Analysis as per USP standards
- Controlled Steam Injection to attain the critical requirements of USP 660
- Online documenting of 1 temperature and 1 pressure channel along with F0 summation to external DMP (included)
- Touch screen PLC with password protection upto 3 levels
- Ergonomically designed single lever closing of lid and external square panel design
- Lid safety - process will not start unless lid locked fully and lid will not open when chamber under pressure
- Over temperature safety with independent alarm
- Chamber designed and tested as per ASME guidelines
- Chamber and lid fully SS 304. External panels also of SS 304, epoxy coated for abrasion resistance and durable finish
- With SS wire mesh Carrier(s) and spare gasket
| Model |
Ch. / Eff.
Vol. |
Usable Inner
Dimensions
|
Max. Oprtng.
Prmtrs |
Product Ext.
Dim. |
Packing
|
| #7421EL |
43 / 35 L |
Ø 300 x 500 mm |
103.4 kPA (15 psi) / 122ºC |
660 x 460 x 980 mm |
0.62 m3 / 80 kg |
For more details, please send a request on: sales@medicainstrument.com
